XCMG Construction Machinery Gear Shift Control Console with Digital Display

XCMG Construction Machinery Gear Shift Control Console

The XCMG Gear Shift Control Console is an OEM-grade transmission control unit designed for XCMG heavy construction machinery. Featuring an ergonomic joystick-style gear lever, integrated digital gear display, and clutch indicator, this console delivers precise and reliable gear selection in demanding job-site environments.

Key Features

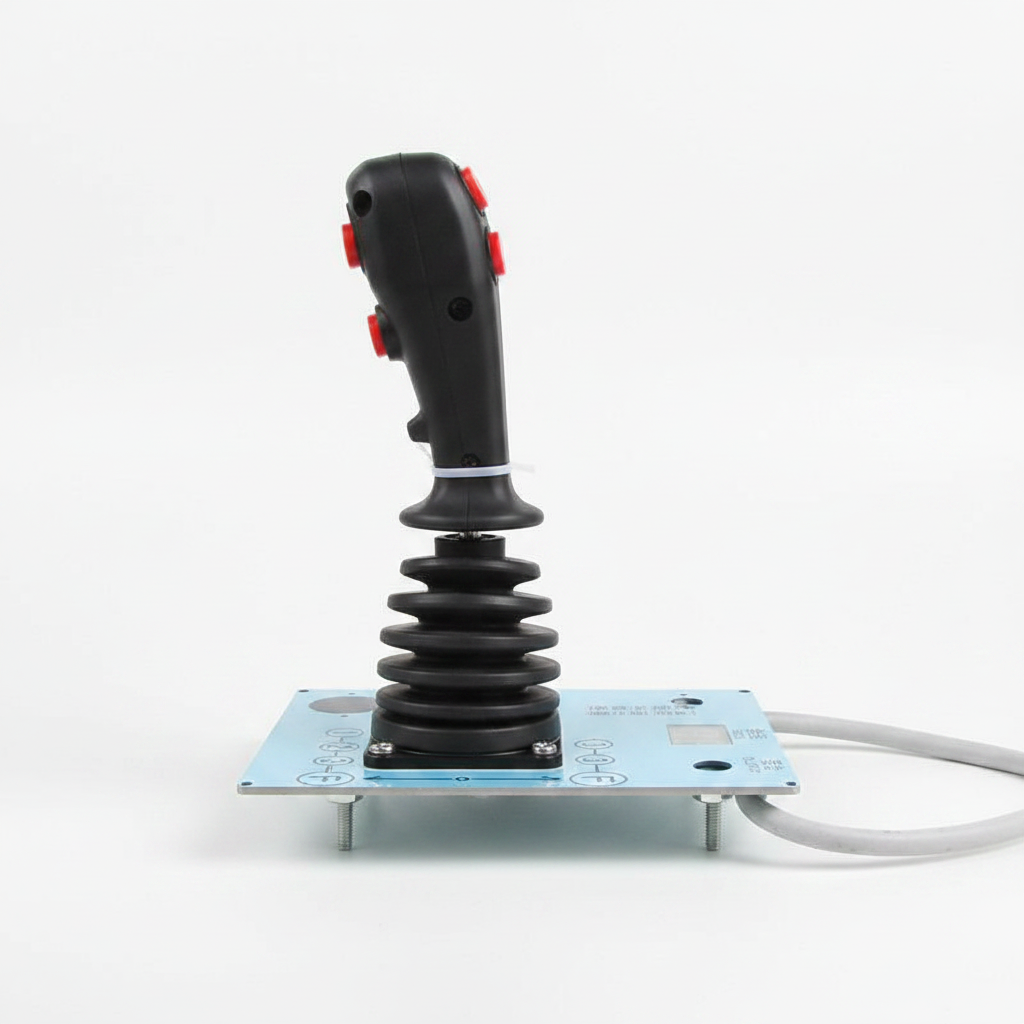

• Ergonomic Joystick Gear Lever: Multi-directional joystick handle with anti-slip grip and red function buttons on top for intuitive, fatigue-free operation

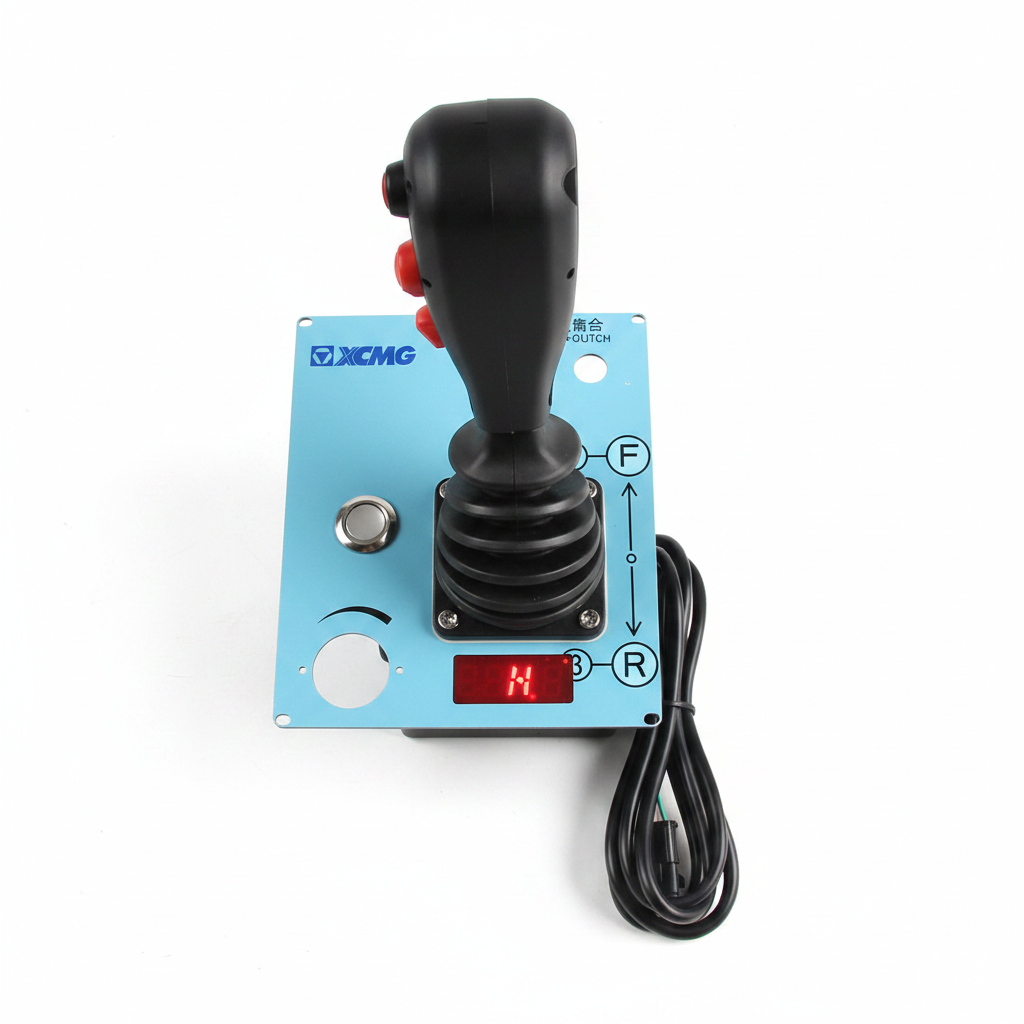

• Digital LED Gear Display: Real-time gear position readout (GEAR) and clutch status indicator (CLUTCH) on the control panel for clear operator awareness
• Full Gear Range: Supports Forward (F), Reverse (R), and 1st, 2nd, 3rd gear positions — gear pattern clearly labeled on the panel
• Heavy-Duty Metal Panel: Light blue powder-coated steel mounting panel with XCMG branding, corrosion-resistant and built for harsh outdoor conditions

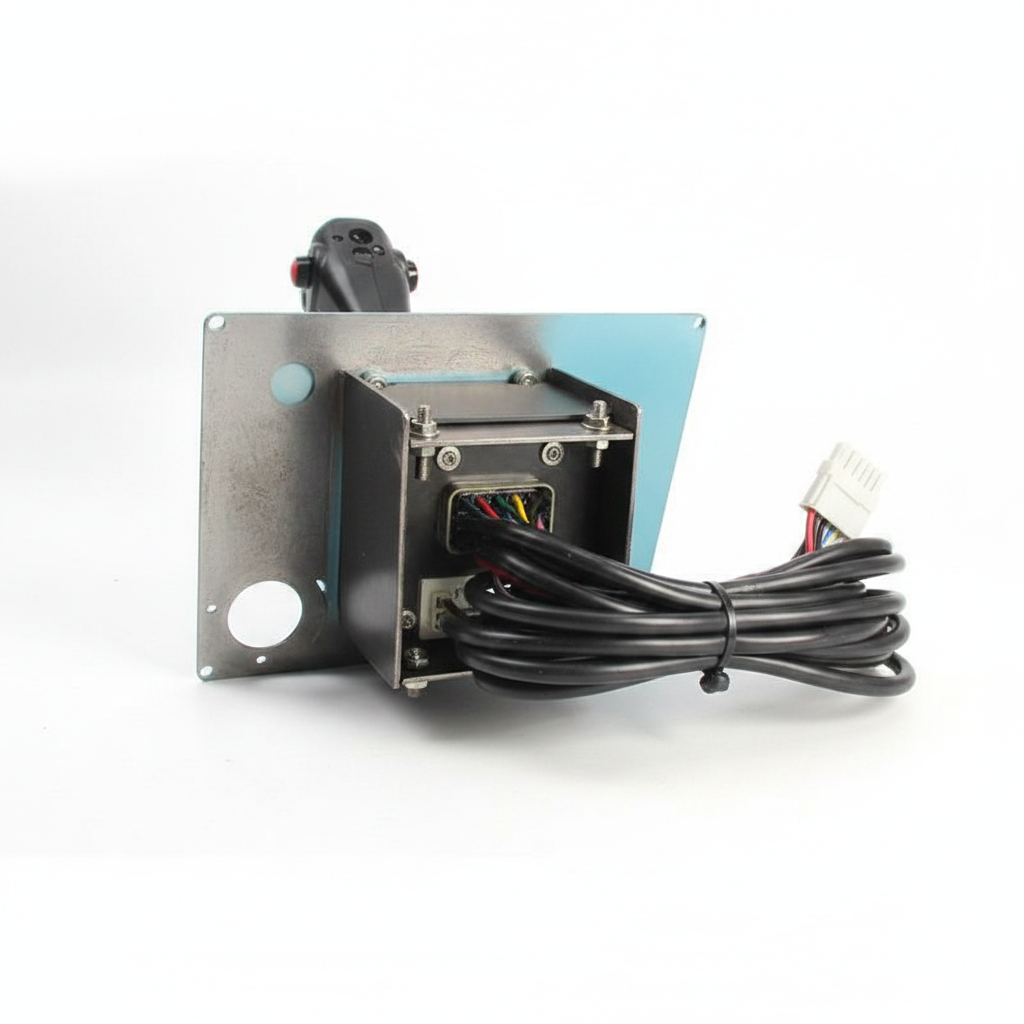

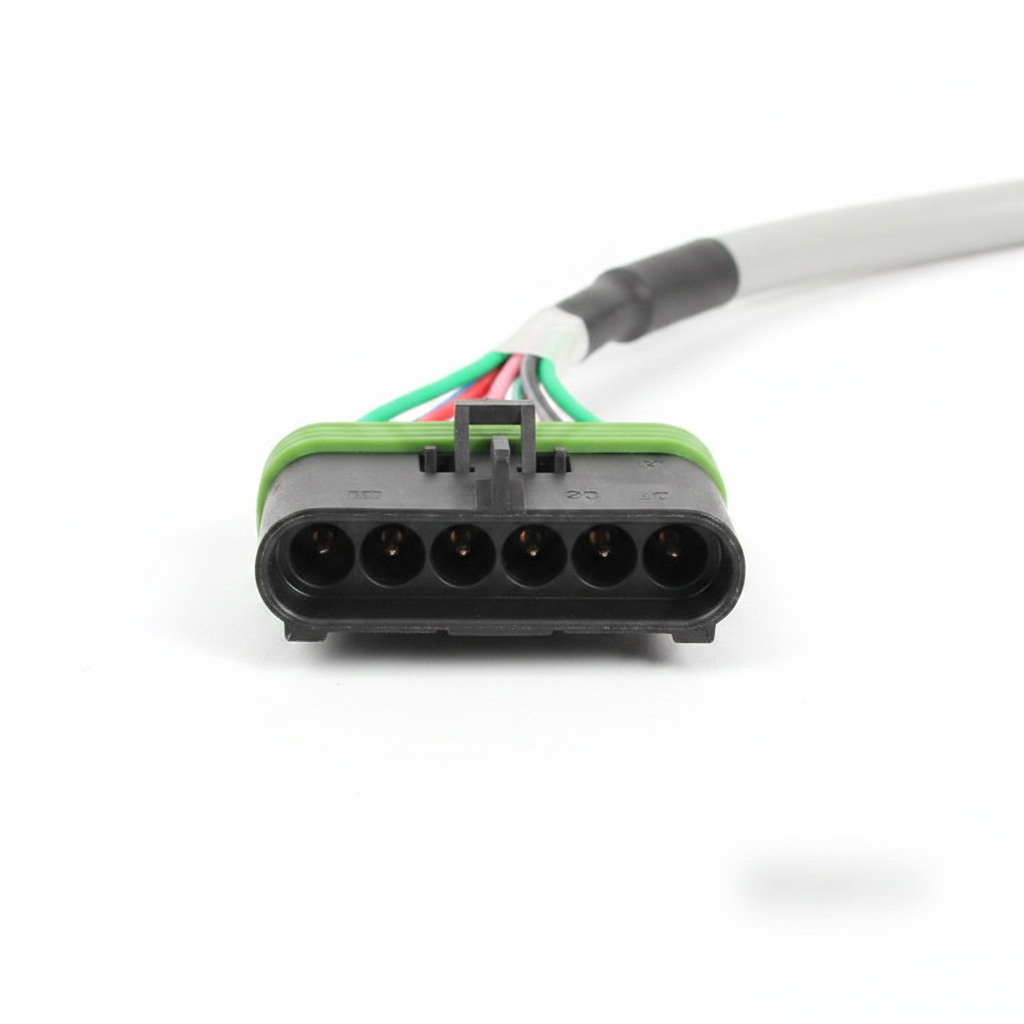

• Multi-Pin Electrical Connector: Pre-wired with a 6-pin automotive-grade waterproof connector and color-coded wiring harness for easy plug-and-play installation
• OEM Direct Replacement: Manufactured to XCMG factory specifications for direct bolt-on fitment — no modification required
• Vibration Resistant: Designed to withstand continuous vibration and shock loads typical of road roller and compaction equipment operation

Specifications

• Brand: XCMG
• Type: Gear Shift Control Console / Joystick Transmission Controller
• Gear Positions: F / 1 / 2 / 3 / R
• Display: Digital LED gear indicator
• Connector: 6-pin multi-pin waterproof connector
• Panel Material: Powder-coated steel
• Application: Road rollers, compactors, and XCMG construction machinery

Compatible Machine Models

XS263J, XS223J, XS203J

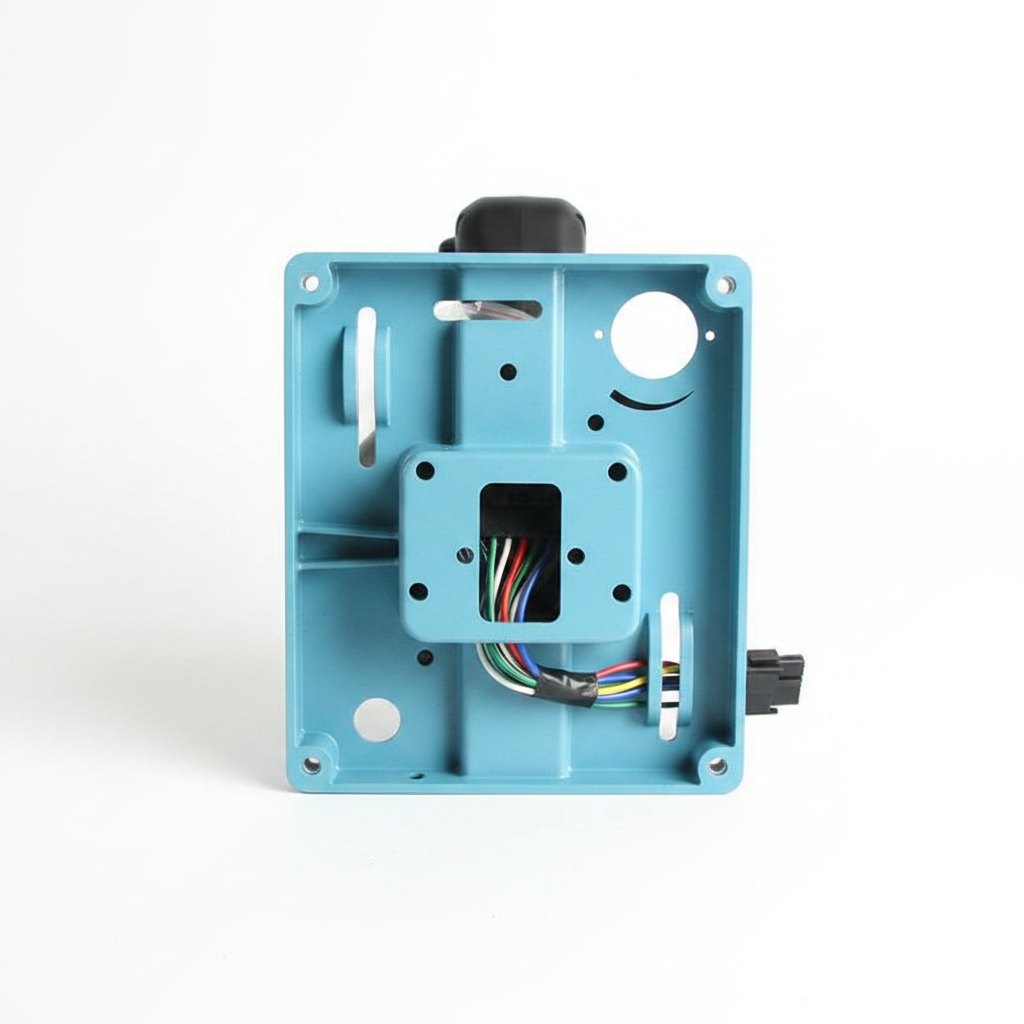

Installation Notes

Align the mounting panel holes with the cab bracket before securing. Connect the wiring harness plug to the corresponding socket — refer to the machine's electrical diagram for pin assignment. Ensure all connections are secure before powering on. Suitable for direct replacement without reprogramming on compatible XCMG models.
